支持向量机

16 Nov 2017

Reading time ~2 minutes

1.考虑在线性可分集上的超平面将两类点分开

设图中的超平面为\( w^T x + b = 0 \), 样本集到超平面的距离为：\( \rho = \textrm{min} \frac{y_i(w^T x_i + b)}{|w|} = \frac{a}{|w|}\) (即图中的margin为\(\frac{a}{|w|}\))

SVM的优化目标：最大化\(\frac{a}{|w|}\)，约束为\( y_i(w^T x_i + b) \geq a\)

令\( \hat{w} = \frac{w}{a}, \hat{b}=\frac{b}{a}\), 则优化目标变为：最大化\(\frac{1}{|\hat{w}|}\)，约束为\( y_i(\hat{w}^T x_i + \hat{b}) \geq 1\)

注意：将超平面由\( w^T x + b = 0 \)变换到\( \hat{w}^T x + \hat{b} = 0 \)并不改变分类结果，因为\( \textrm{sign}(w^T x + b) = \textrm{sign}(\hat{w}^T x + \hat{b})\)

不妨将优化目标记为：\(\textrm{min } \frac{1}{2}{|w|}^2, s.t. y_i(w^T x_i + b) \geq 1, \forall i\)

Lagrange乘数法与KKT条件

构造拉格朗日函数（\(\alpha_i\)非负)：\(L(w,b,\alpha)=\frac{1}{2}|w|^2-\sum{\alpha_i[y_i(w^T x_i + b)-1]}\)

使得\(L\)取得极值的\(w,b,\alpha\)需满足：\(\frac{\partial L}{\partial w}=0;\frac{\partial L}{\partial b}=0;\forall i,\alpha_i[y_i(w^T x_i + b)-1]=0\). 即：

\[w=\sum{\alpha_i y_i x_i}\] \[\sum{\alpha_i y_i}=0\] \[\alpha_i=0 \textrm{ OR } y_i(w^T x_i + b)=1, \forall i\]

则

\begin{align} L &= \frac{1}{2}w^T w - \sum{\alpha_i y_i w^T x_i} - b\sum{\alpha_i y_i} + \sum{\alpha_i} \\ &= \frac{1}{2}w^T\sum{\alpha_i y_i x_i} - \sum{\alpha_i y_i w^T x_i} - 0 + \sum{\alpha_i} \\ &= \sum{\alpha_i} - \frac{1}{2}\sum{\alpha_i y_i w^T x_i} \\ &= \sum{\alpha_i} - \frac{1}{2}\sum\sum{\alpha_i y_i \alpha_j y_j x_i^T x_j} \end{align}

对偶问题

转化成求如下对偶问题： \[\textrm{max} Q(\alpha)=\sum{\alpha_i}-\frac{1}{2}\sum\sum{\alpha_i y_i \alpha_j y_j x_i^T x_j} \textrm{ s.t. } \sum{\alpha_i y_i}=0, \alpha_i \geq 0\]

注意，支持向量的\(\alpha_i \neq 0\)，即满足\(y_i(w^T x_i + b)=1\)的点，求解该对偶问题可以得到\(\alpha_i\)，则

\[w = \sum{\alpha_i y_i x_i}\] \[b = y_i - w^T x_i \textrm{ (Any } (x_i, y_i) \textrm{ which satisfies } \alpha_i \neq 0 \textrm{ will be alright.)}\]

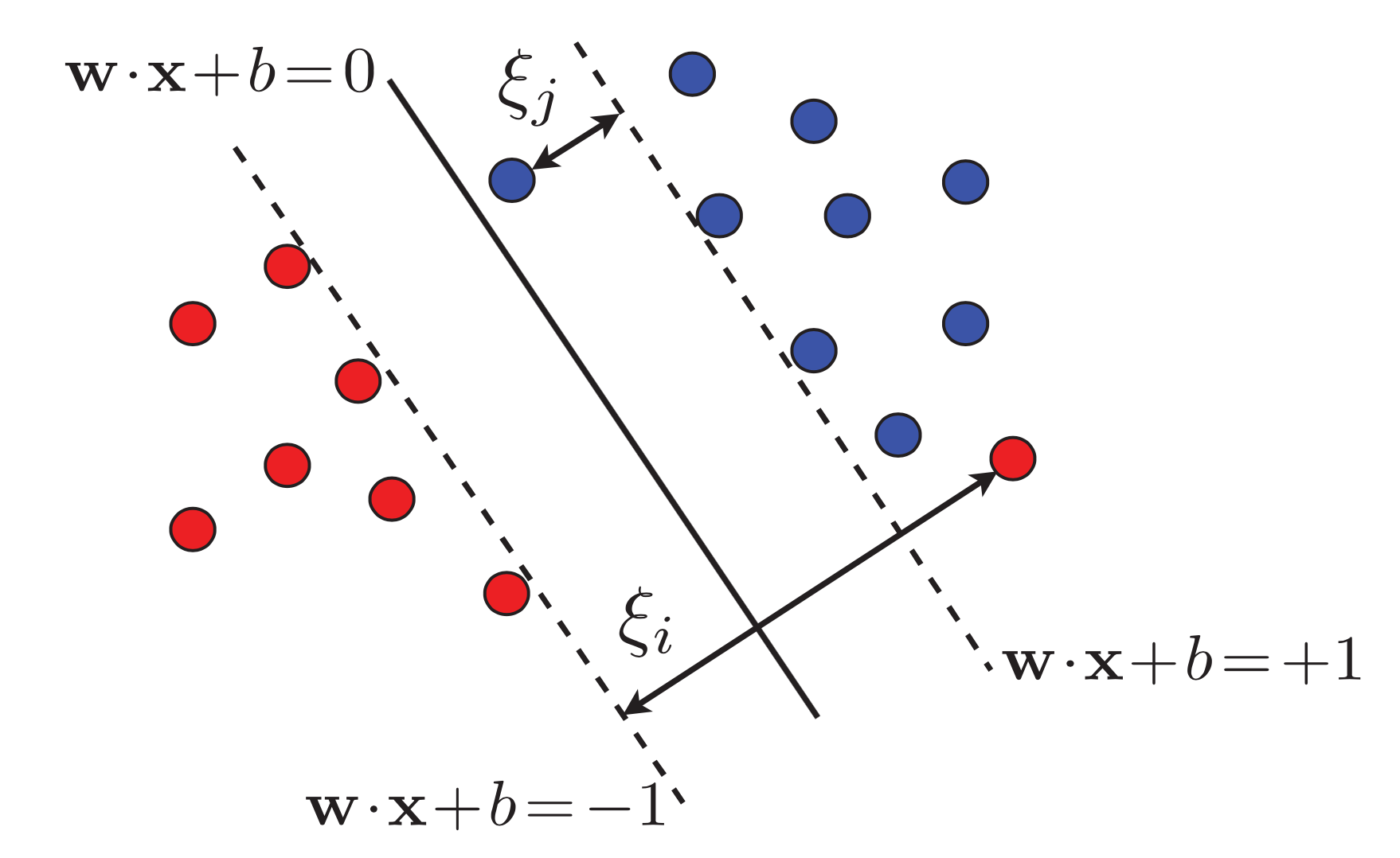

2.考虑在线性不可分集上的情况

\(\exists x_i\), 使得\(y_i(w^T x_i + b) < 1\), 此时的优化目标引入松弛变量\(\xi_i\).

\[\textrm{min }\frac{1}{2}|w|^2 + C\sum{\xi_i}\] \[ \textrm{ s.t. } y_i(w^T x_i + b) \geq 1 - \xi_i, \xi_i \geq 0, \forall i\]

Lagrange乘数法与KKT条件

构造拉格朗日函数（\(\alpha_i, \beta_i\)非负)： \[L(w,b,\xi,\alpha,\beta)=\frac{1}{2}|w|^2 + C\sum{\xi_i} - \sum{\alpha_i[y_i(w^T x_i + b)-1+\xi_i]} - \sum{\beta_i \xi_i}\]

使得\(L\)取得极值的\(w,b,\xi,\alpha,\beta\)需满足：\(\frac{\partial L}{\partial w}=0;\frac{\partial L}{\partial b}=0;\forall i,\frac{\partial L}{\partial \xi_i}=0;\forall i,\alpha_i[y_i(w^T x_i + b)-1+\xi_i]=0;\)

\(\forall i, \beta_i \xi_i = 0\). 即：

\[w=\sum{\alpha_i y_i x_i}\] \[\sum{\alpha_i y_i}=0\] \[\alpha_i + \beta_i = C\] \[\alpha_i=0 \textrm{ OR } y_i(w^T x_i + b) = 1 - \xi_i, \forall i\] \[\beta_i=0 \textrm{ OR } \xi_i = 0, \forall i\]

则

\begin{align} L &= \frac{1}{2}w^T w + C\sum{\xi_i} - \sum{\alpha_i y_i w^T x_i} - b\sum{\alpha_i y_i} + \sum{\alpha_i} - \sum{\alpha_i \xi_i} - \sum{\beta_i \xi_i}\\ &= \frac{1}{2}w^T\sum{\alpha_i y_i x_i} + C\sum{\xi_i} - \sum{\alpha_i y_i w^T x_i} - 0 + \sum{\alpha_i} - \sum{\alpha_i \xi_i} - \sum{\beta_i \xi_i} \\ &= \sum{\alpha_i} - \frac{1}{2}\sum{\alpha_i y_i w^T x_i} + \sum{(C - \alpha_i - \beta_i) \xi_i} \\ &= \sum{\alpha_i} - \frac{1}{2}\sum\sum{\alpha_i y_i \alpha_j y_j x_i^T x_j} \end{align}

对偶问题

转化成求如下对偶问题： \[\textrm{min } Q(\alpha)=\frac{1}{2}\sum\sum{\alpha_i y_i \alpha_j y_j x_i^T x_j} - \sum{\alpha_i} \] \[\textrm{ s.t. } \sum{\alpha_i y_i}=0, C \geq \alpha_i \geq 0, \forall i\]

求解该对偶问题可以得到\(\alpha_i\)，则 \[w = \sum{\alpha_i y_i x_i}\] \[b = y_i - w^T x_i \textrm{ (Any } (x_i, y_i) \textrm{ which satisfies } 0 < \alpha_i < C \textrm{ will be alright.)}\]
